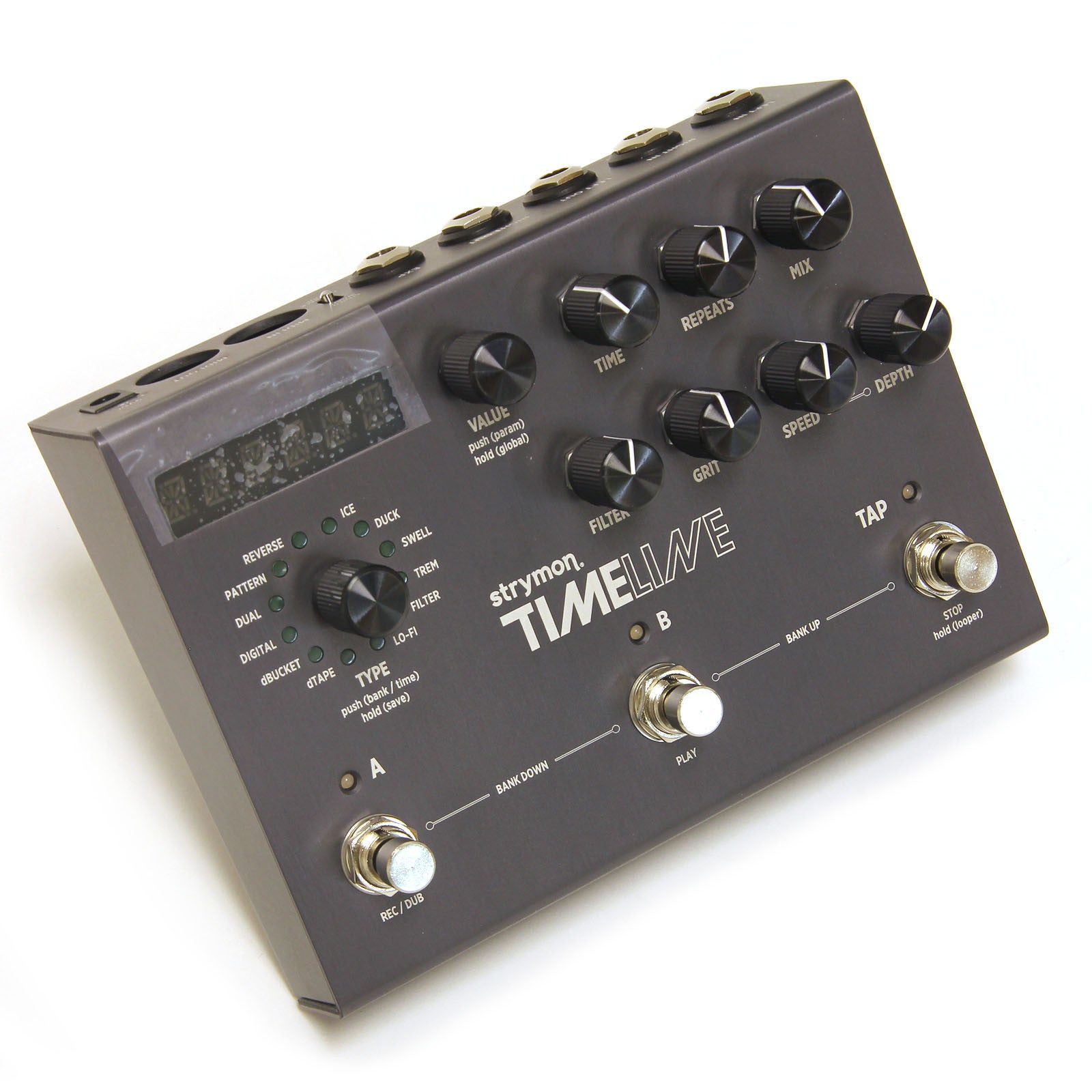

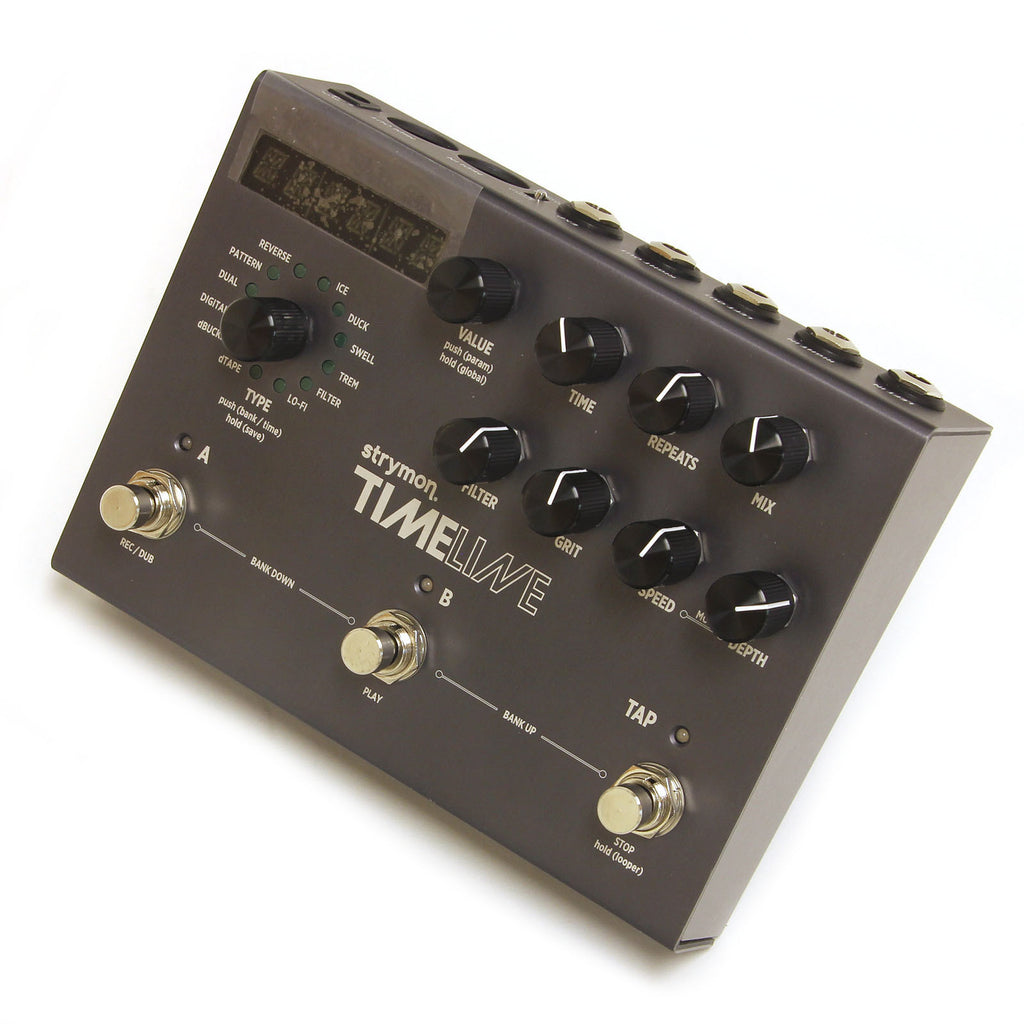

Strymon Timeline Delay

Strymon created the Timeline, a studio-class stereo delay effects pedal, to go well beyond what has been done before- The sound quality, sonic flexibility, hardware design, and processing power are all leagues beyond what has previously been available in such a concise package. The Strymon Timeline contains some of the most spacious, lush, creative, and tweakable delay effects ever heard. It was a monumental task that required relentless study of delays and their nuances, as well as the continuous pursuit of innovative and musically inspirational sounds. Every drop of processing power is harnessed from it's ridiculously powerful SHARC DSP. Each algorithm is so detailed it requires the entire processor.

TimeLine provides you with twelve different delay machines, each with extensive control over sonic character and feel. Tweak to your hearts content and save up to 200 presets of your favorite sounds. Everything is available in the Timeline- From the crisp and clear, studio-quality digital delays, all the way to the saturated and fluctuating sounds of Analog Tape. The Strymon Timeline is a Delay Lovefest with warm and fuzzy analog style repeats all the way to shimmery, sparkling, and crystalline ice delays.

Features and Specifications:

Sound Design!

  • Hand crafted, studio-class delay algorithms deliver meticulous, detailed and nuanced delay experiences
  • Twelve delay styles: Digital, Dual, Pattern, Reverse, Ice, Duck, Swell, Trem, Filter, Lo-fi, dTape, dBucket
  • Seven front-panel tone shaping knobs: Time, Repeats, Mix, Filter, Grit, Mod Speed, Mod Depth
  • Additional menu-driven parameters deliver extremely flexible tone shaping options and complete tweakability
  • 200 easily accessible and nameable presets, save and recall at the press of a switch
  • Full MIDI implementation
  • Routable, 30-second stereo looper

High Quality Construction!

  • Rugged metal footswitches for preset selection, effect bypass, looper control, and Tap Tempo
  • LED display for preset info, BPM / time readout and extended parameter control
  • Stereo input and output
  • Expression pedal input (control any knob, combination of knobs or tap tempo) saveable per preset
  • MIDI input and output
  • Switchable I/O configuration: Stereo Out or Mono with Delay Feedback Loop Insert

High Quality Audio!

  • Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters
  • 115dB typical signal to noise
  • Analog dry path for a zero latency dry signal that is never converted to digital
  • Premium analog front end and output section
  • Super high performance DSP in a compact form factor
  • 32-bit floating point processing


  • True Bypass
  • Selectable Trails mode with high quality, transparent Analog Buffered Bypass
  • +/- 3dB Boost/Cut
  • Selectable Tap Subdivision
  • Optional Kill Dry mode mutes dry signal, for use in parallel effects loops
  • Optional Global Tap Tempo mode
  • Included 9V DC power supply (300mA required minimum)
  • Rugged and lightweight gunmetal gray anodized aluminum chassis
  • Dimensions: 6.75" wide, 5.1" deep
  • Crafted with love in the USA


SKU: mm2216
